Riland MIG 180PGDM Double Pulse MIG Welding Machine

R 11,592⁰⁰

Tax included Shipping calculated at checkout.

Delivery and Shipping

Free Shipping: On all orders over R1750.00 & under 25kg

Estimated Delivery: 3-5 Days

Downloads

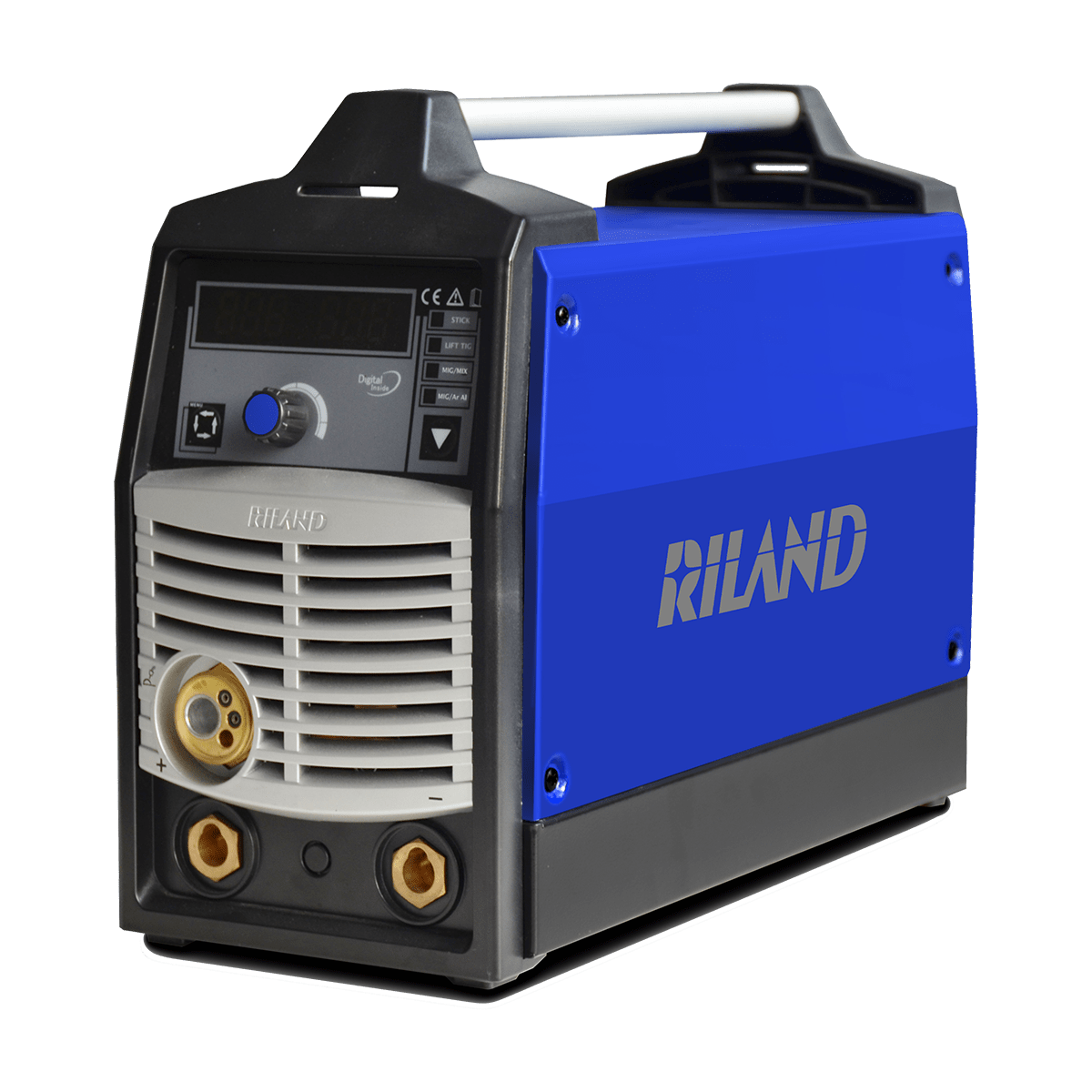

Riland MIG 180PGDM Multi-Process MIG-TIG-ARC Welding Machine

- MIG - TIG Welding Machine

WORLD'S SMALLEST DOUBLE PULSE MIG WELDER

The Riland MIG 180PGDM is a light industrial, fully digital pulse MIG Welding Machine. The MIG Welding Machine can complete the following processes, MIG/MIX, MIG/Ar Al, MIG/Gasless, MMA and Lift TIG Function. The Riland MIG 180PGDM is the world's smallest MIG Welding Machine with pulse functionality and offers synergic welding, with a built-in CPU that provides self-adaptive ARC Force and Hot Start features.

This single-phase MIG Welding Inverter unit is 180 Amp, with 100% Duty Cycle up to 90 Amps on MIG Welding, 85 Amps on MMA/ARC, and 100 Amps on TIG Welding it is also compatible with 1kg and 5kg wire rolls and offers 2T and 4T function, with a polarity switch for switching between Gas and Gasless Welding. The most compact and versatile MIG Welding Machine on the market.

Processes

MIG/MIX
MIG/Ar Al
MIG/Gasless
MMA
Lift-TIG

Package Includes

Inverter Power Source
3M MIG Welding Torch
3M Earth Cable
3M Gas Hose
2 x Hose Clamps
Manual

Features

The smallest MIG Welding Machine with pulse in the world
Built-in CPU
Synergic Welding, voltage and induction micro-adjustable
2T/4T Function
Polarity switch inside MIG Wire chamber
Self-Adaptive ARC Force & Hot Start
Anti-Sticking
VRD Adjustable
Fan Cooled, reduced noise and dust
Compatible with 1kg & 5kg Spools
220V

Riland MIG 180PGDM MIG Welding Machine - Technical Data


Brand	Riland Welding Machine
Product	MIG 180PGDM
Product Type	MIG Welder, TIG Welder and ARC Welder
Code	6-10RMIG01
Input Voltage/Phase/Frequency	220V/1P/50-60 Hz
Amps Input at Rated Output	MIG: 34A@180A MMA: 34A@160A TIG: 27.5A@180A
Output Current/Voltage/Duty Cycle (40°C)	MIG: 90A/18.5V/100% - 180A/23V/25% MMA: 85A/23.4V/100% - 160A/26.4V/25% TIG: 100A/14V/100% - 180A/17.2V/25%
Output Range/OCV	MIG: 50-180A/56V MMA: 15-160A/56V/17V (VRD) TIG: 15-180A/17V
Weight	8 kg
Dimension (mm)	386 X 170 X 300

DOWNLOAD RILAND 180 PGDM MIG PULSE WELDER SPEC SHEET
