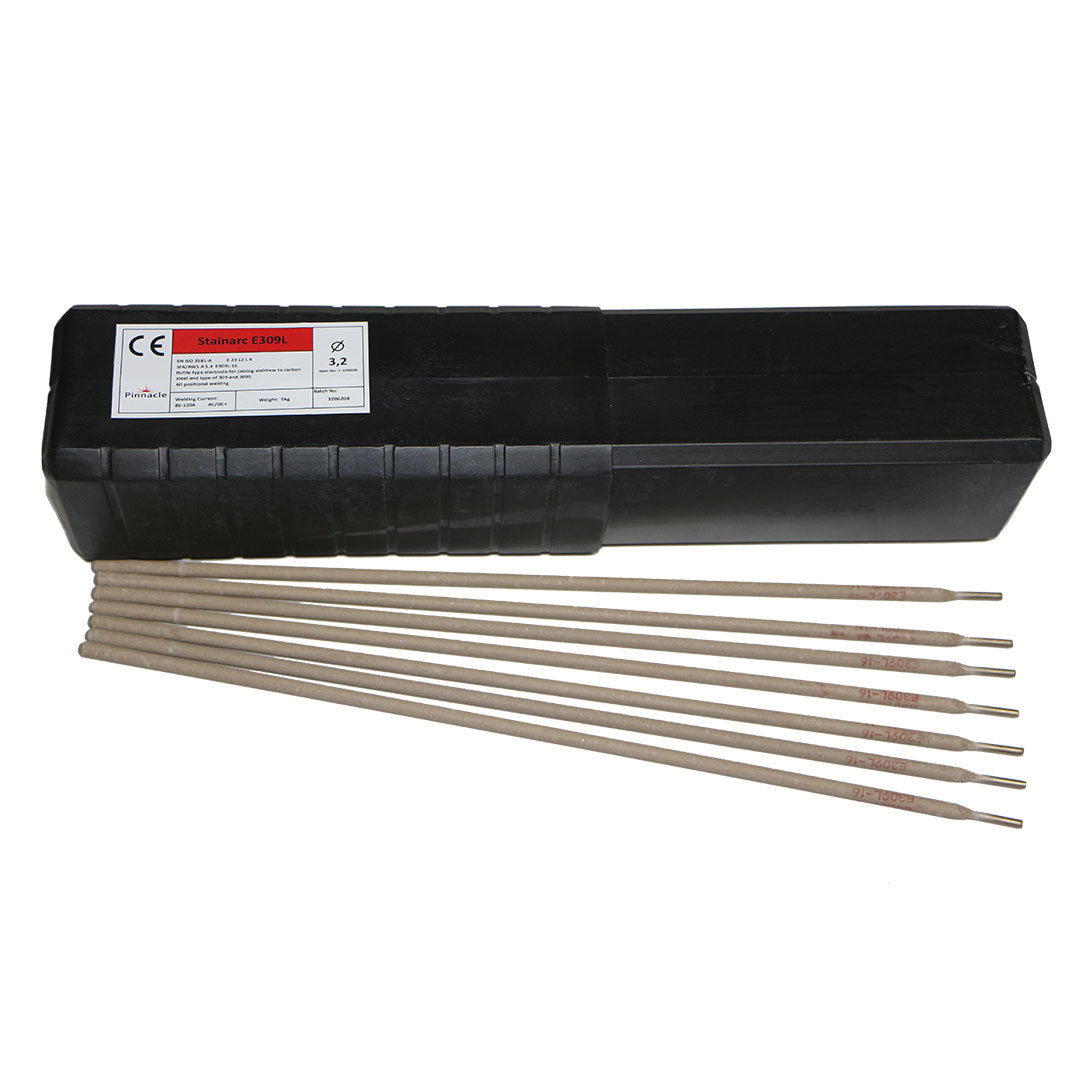

    Pinnacle STAINARC E309L-16 Stainless Steel Welding Electrodes 2kg


    Pinnacle STAINARC E309L-16 stainless steel welding electrodes are low-carbon, coated electrodes designed primarily for welding stainless steel to mild or low-alloy steels, as well as for stainless steel overlays and cladding applications. They provide excellent resistance to intergranular corrosion and cracking, making them ideal for heat-resistant and corrosion-resistant joints.

    The electrode deposits an austenitic-ferritic weld metal with typical chemical composition including approximately 23% chromium and 12% nickel, ensuring strong corrosion resistance superior to standard 309 electrodes.



    Classification: AWS A5.4 E309L-16



    Chemical Composition:

    Carbon Manganese Silicon Phosphorus Sulphur Chromium Nickel
    0.030 1.000 0.750 0.030 0.010 23.600 12.500
    MAX 1.500 MAX MAX MAX 20.000 14.000



    Mechanical Composition:

    • Tensile Strength: 650 Mpa
    • Yield Strength: 450 Mpa
    • Elongation: 30% Min
    • Charpy V-Notch: +20°C 50 J

    General Data
    Product Code Diameter Length Welding Current  Packaging
    1-100601 2.50mm 350mm 50-85A 2kg
    1-100602 3.20mm 350mm 80-120A 2kg
    1-100603 4.00mm 350mm 100-150A 2kg


    • Type Welding Electrodes
    • SKU SH-1-100607-2KG
    • Brand Pinnacle
    • Electrode Size 2.5mm / 3.2mm / 4.0mm
    • Dimensions 375mm x 55mm x 55mm
    • Weight 2kg
