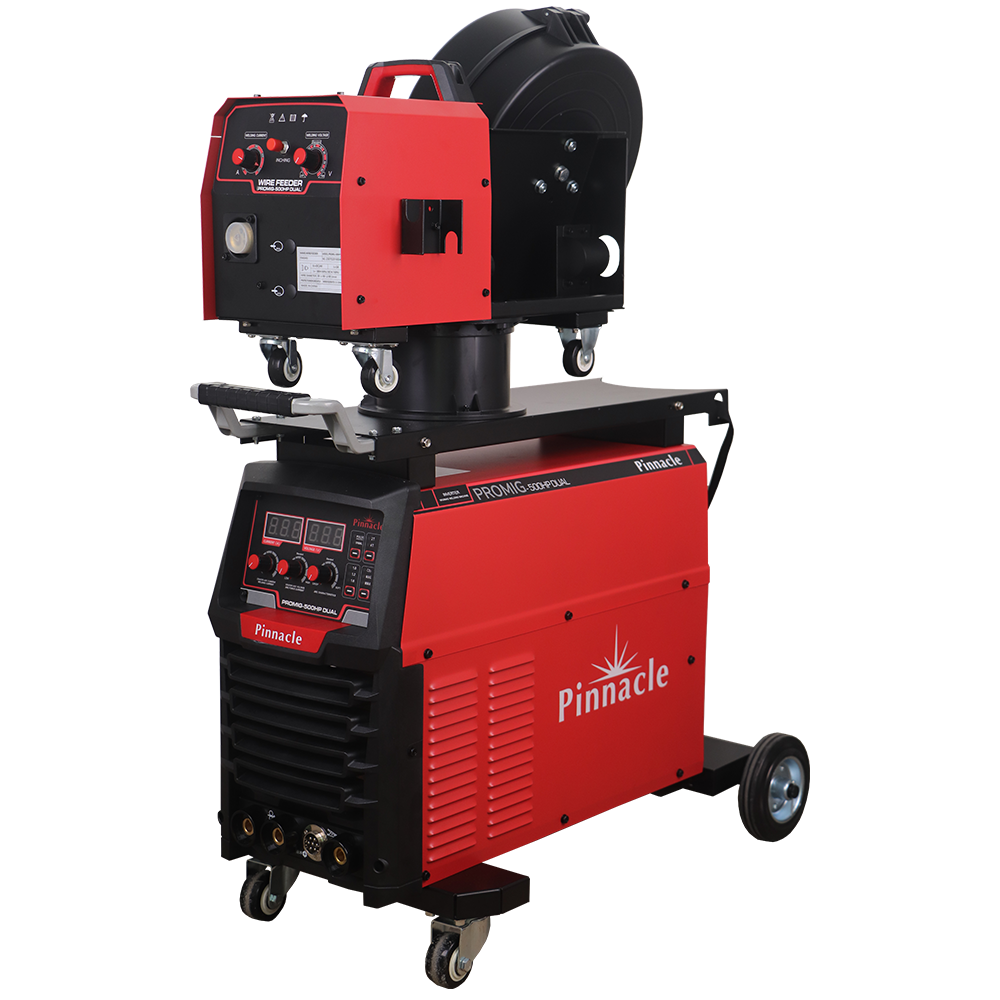

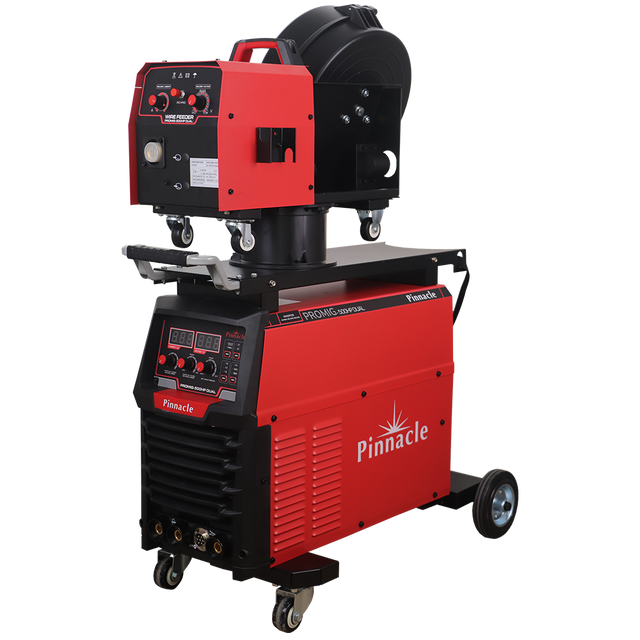

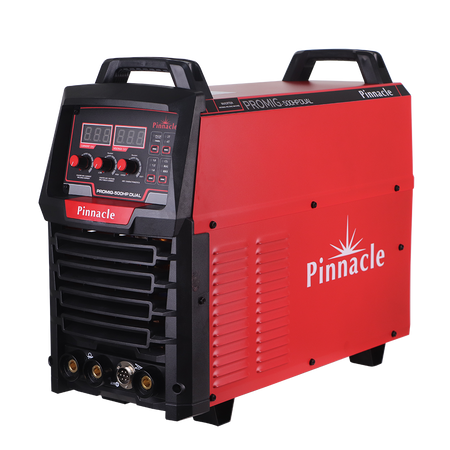

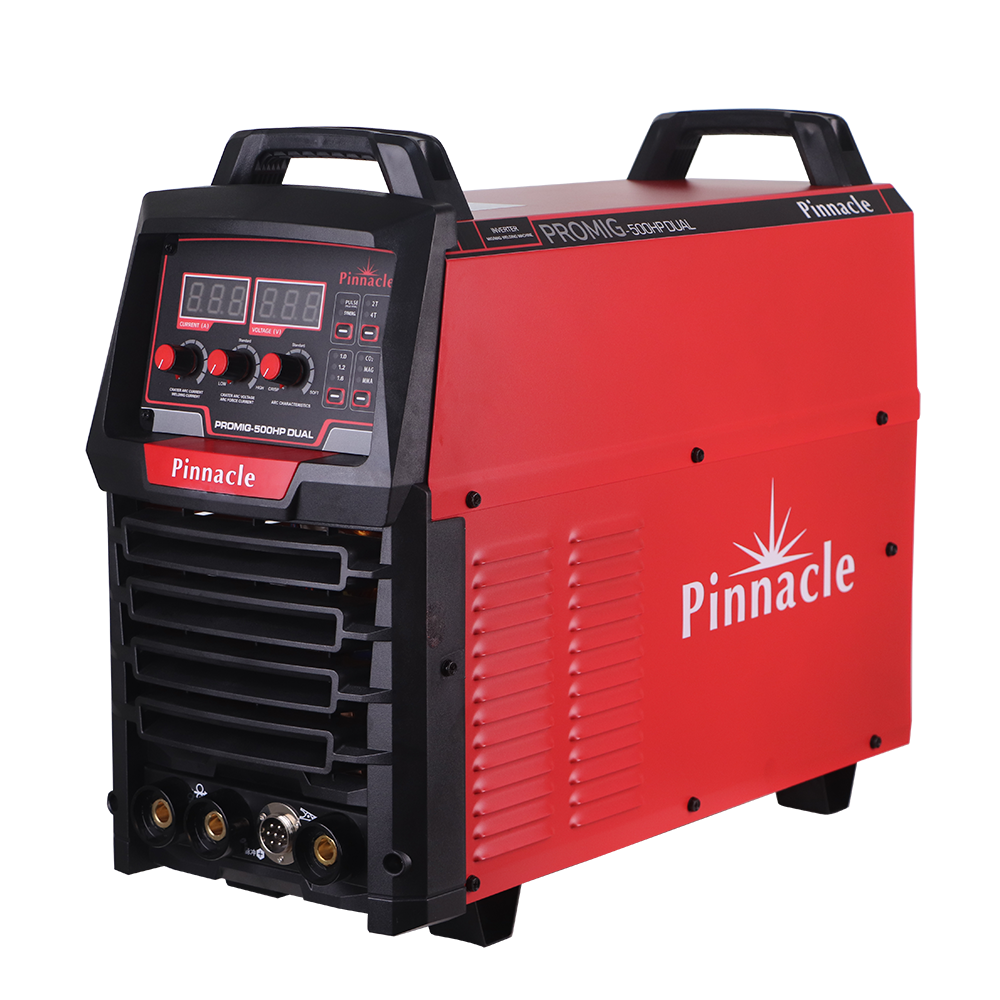

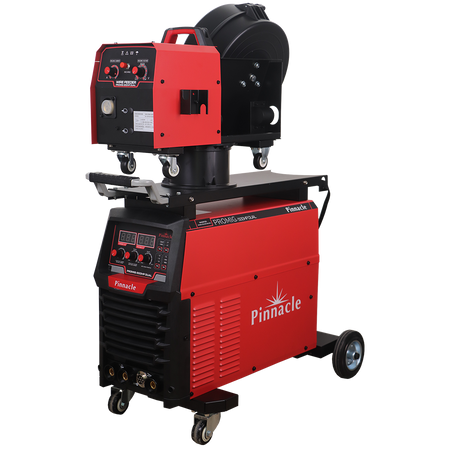

Pinnacle ProMIG 500HP Dual – Advanced 500 Amp Dual Voltage Single Pulse MIG Welding Machine

500 amp dual voltage MIG welder • single pulse MIG welding machine • welding machine price • dual voltage welder • high-performance MIG welder

The Pinnacle ProMIG 500HP Dual Voltage Single Pulse MIG Welding Machine offers unmatched versatility and power for professional welders. With its dual voltage capability, this machine operates seamlessly across different power supplies, providing maximum flexibility for industrial and workshop environments. Featuring a 500-amp output and single pulse MIG welding technology, it delivers precision, reduced spatter, and superior control, making it ideal for aluminum, stainless steel, and other challenging materials. Advanced IGBT inverter technology ensures efficient energy usage and enhanced arc stability, making the ProMIG 500HP Dual the ultimate solution for heavy-duty welding applications.

Key Features:

• 500A dual voltage single pulse MIG welding for versatile applications
• Dual voltage capability for flexible power usage across different settings
• Single pulse technology for cleaner welds and reduced spatter
• IGBT inverter technology for efficient energy consumption and superior arc control
• Rugged design suitable for industrial and workshop use

Technical Specifications:

Rated Input Voltage: 380V / 220V
Rated Frequency: 50/60Hz
Rated Input Current: 34.5A / 68A
Output Current Range: 80-500A
Output Voltage Range: 16.5-39V
Duty Cycle (40'C): 60% at 500A
Power Factor: 0.93
No Load Voltage: 65V
Efficiency: 85%
Wire Size: 1.0-1.6mm
Electrode Size: -
Wire Feeder Type: Separate
Insulation Class: F
Protection Class: IP21S

Product Overview:

The Pinnacle ProMIG 500HP Dual Voltage Single Pulse MIG Welding Machine combines powerful 500A performance with the versatility of dual voltage capability, making it perfect for both industrial settings and workshops. Its single pulse technology ensures precision and cleaner welds, ideal for demanding projects involving aluminum, stainless steel, and other materials. For inquiries, reach out to us at 079 380 7162 or email orders@pinnacleonline.co.za.

FAQ - Frequently Asked Questions:

Is pulsed MIG worth the money?

Yes, pulsed MIG is worth the investment for professionals who need cleaner, more precise welds with less spatter and heat distortion. This technique is especially beneficial for thin materials like aluminum and stainless steel.

What is the difference between MIG and pulse MIG?

MIG welding uses a constant voltage, while pulse MIG alternates between high peak current and a lower background current. This pulsing reduces heat input, minimizes spatter, and improves weld quality, especially on thin or heat-sensitive materials.

What is single pulse MIG welding?

Single pulse MIG welding involves cycling between high and low current levels, which results in controlled heat input and a smoother, cleaner weld with less spatter. It is particularly useful for high-precision work on thin metals and alloys.

How many amps is a good welding machine?

A good welding machine generally offers between 150 to 500 amps, depending on the application. The Pinnacle ProMIG 500HP Dual, with its 500A capacity, is perfect for industrial welding tasks requiring significant power and precision.
