Pinnacle PROMIG 200PET - Versatile MIG Welder for Professional and DIY Projects
MIG Welder • Multi-Process MIG Welding Machine • Pinnacle MIG Welding Machine • MIG Welding Machine
Unleash the power of precision welding with the Pinnacle PROMIG 200PET, a state-of-the-art MIG/MMA/LIFT TIG Pulse Welding Machine. Expertly crafted for the South African market, this robust mig welder is ideal for both professionals and DIY enthusiasts. Its versatile design allows for multiple processes including MIG, MMA, and LIFT TIG, ensuring it meets a wide range of welding needs.
Key Features:
- Advanced Technology: Equipped with the latest IGBT Module Technology for efficient and stable welding.
- Versatile Welding Options: Supports various welding processes, including MIG, MMA, and LIFT TIG.
- Optimized for Thin Plates: Delivers excellent welding effects with minimal spatter, perfect for thin plate welding.
- Wire Compatibility: Compatible with 0.6/0.8/1.0mm 1-Skg Flux cored and solid wire, including 1.0mm 1-Skg AL-Mg welding wire.
- MMA Capability: Also supports MMA welding for 1-Smm welding electrodes.
Technical Specifications:
- Input Voltage: 230V ± 15%
- Frequency: 50/60 Hz
- Output Voltage: 7.7V No-Load
- Input Current: 35A
-
Welding Current Range:
- MIG: 50-200A
- MMA/TIG: 20-200A
- Duty Cycle: 35%
- Efficiency: 85%
- Power Factor: 0.75
- Post Gas Time: 0.2s
- Wire Size: 0.8-8mm
- Insulation Class: H
- Protection Class: IP21S

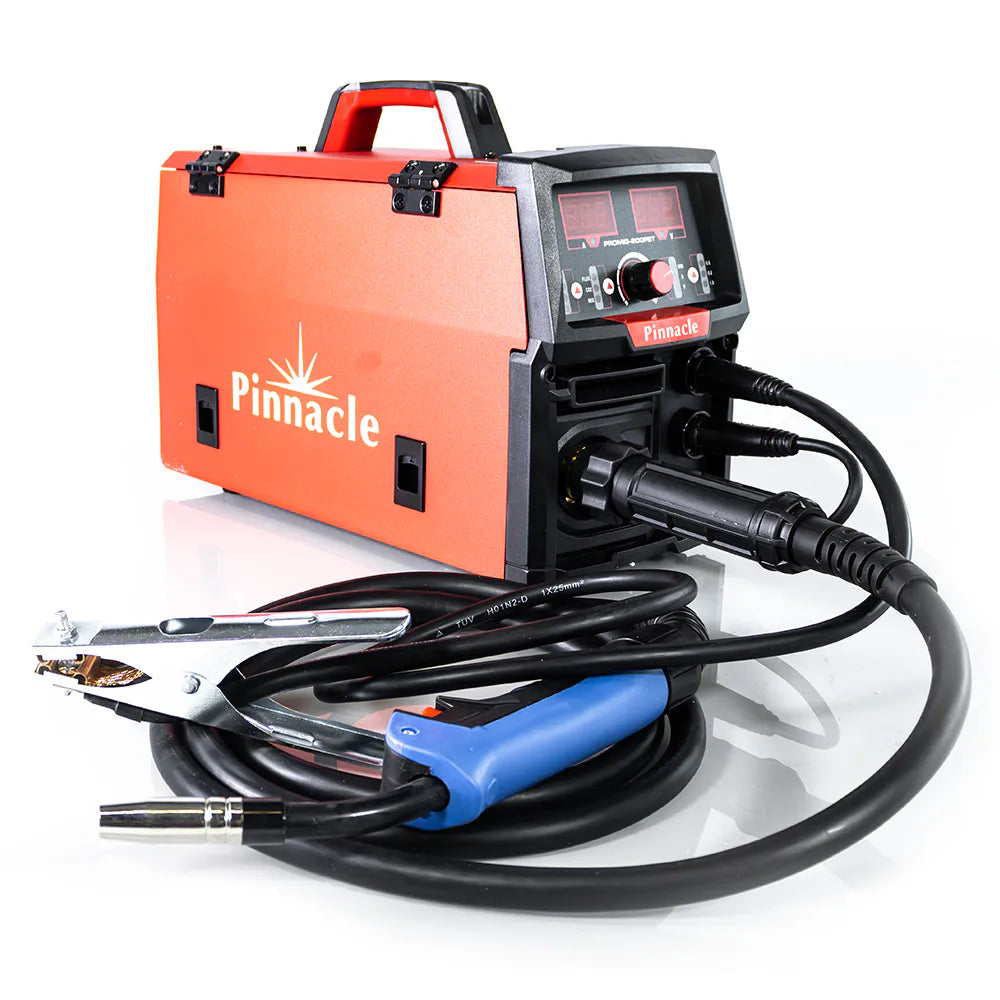

Package Includes:
- Inverter power source
- Welding torch
- Earth cable
Ideal for South African Welders: Whether you're a seasoned welder or just starting out, the PROMIG 200PET is your go-to mig welding machine, combining power, precision, and versatility. Experience top-tier welding performance tailored for the unique demands of the South African welding scene.
- Type Co2/MIG Welding Machines
- SKU 6-PROM01
- Brand Pinnacle
- Rated Input Voltage 230V ± 15%
- Rated Input Frequency 50/60 Hz
- Rated Input Current 35A
- Output Current Range MIG: 50-200A | MMA: 20-200A | TIG: 20-200A
- Rated Duty Cycle 35%
- No Load Voltage 7.7V No-Load
- Power Factor 0.75
- Efficiency 85%
- Electrode Size 1mm - 4mm
- Wire Size 0.8-1.2mm
- Wire Feeder Internal
- Gas Flow 0.2s
- Torch Type MB15
- Spool Size 1kg / 5kg
- Insulation Class H
- Protection Class IP21S
- Weight 12kg
- Warranty 1 Year
