Pinnacle Welding MIGARC 200 Digital Welding Machine
Pinnacle Welding Digital MIGARC 200 MIG-Multi-Process Welding Machine
Pinnacle Welding - Pinnacle Welding Online - MIG Welding Machine - CO2 Welding machine - MIG Welders
Digital Synergic MIG/MMA Welding Machine

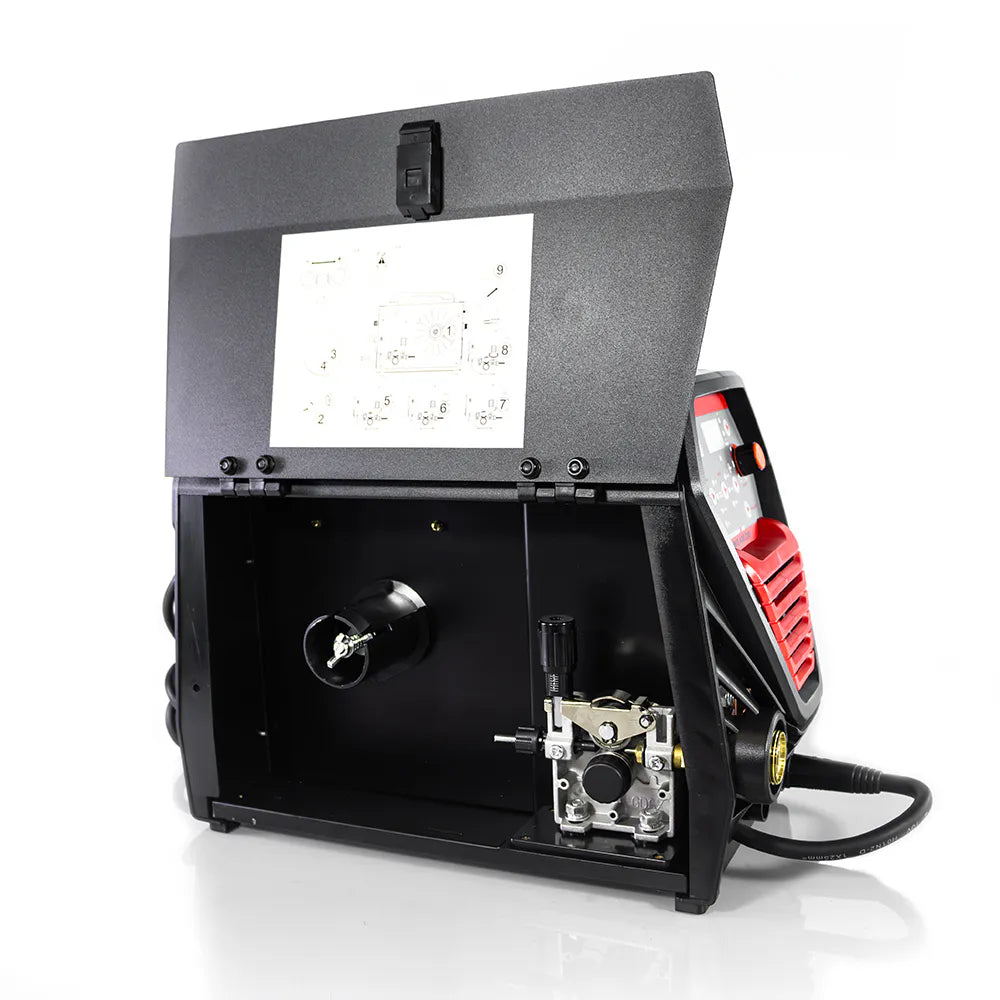

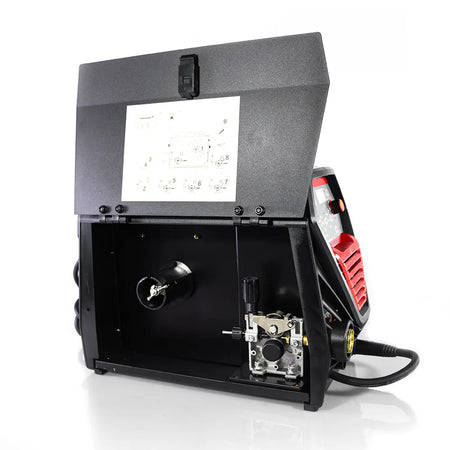

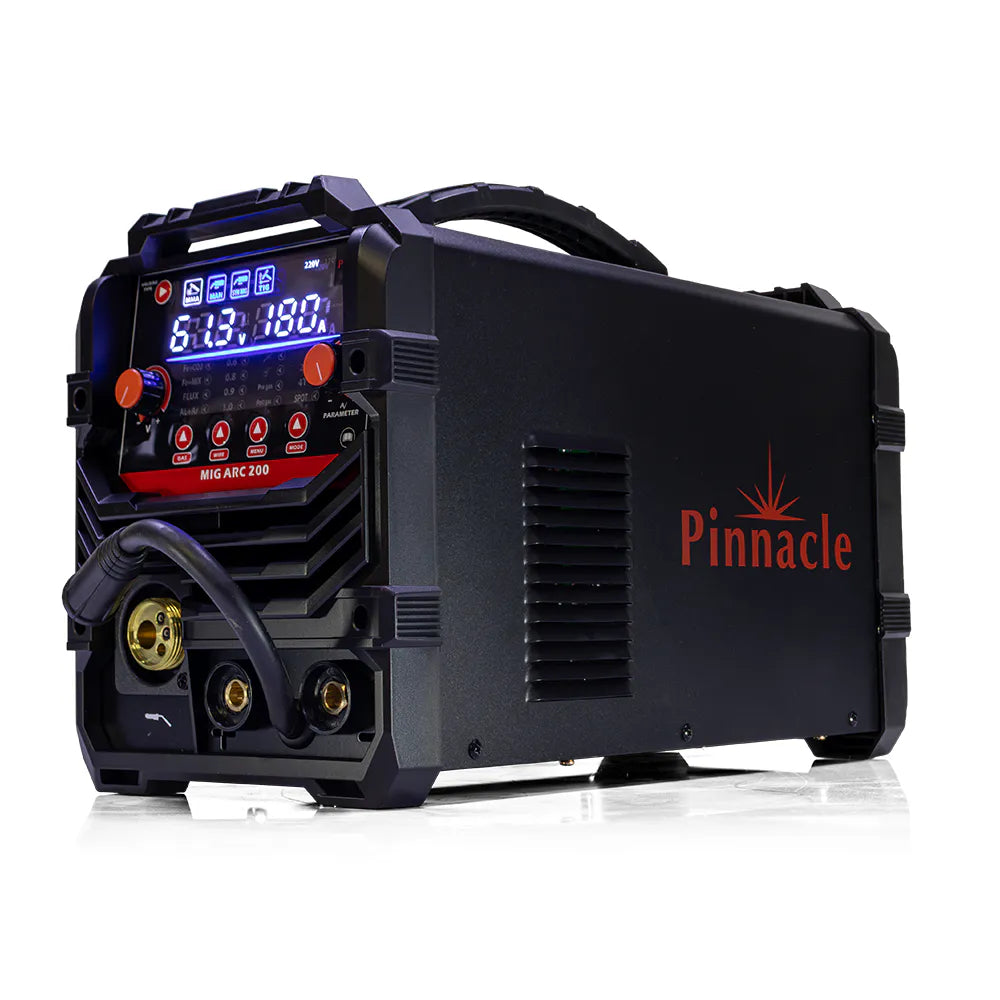

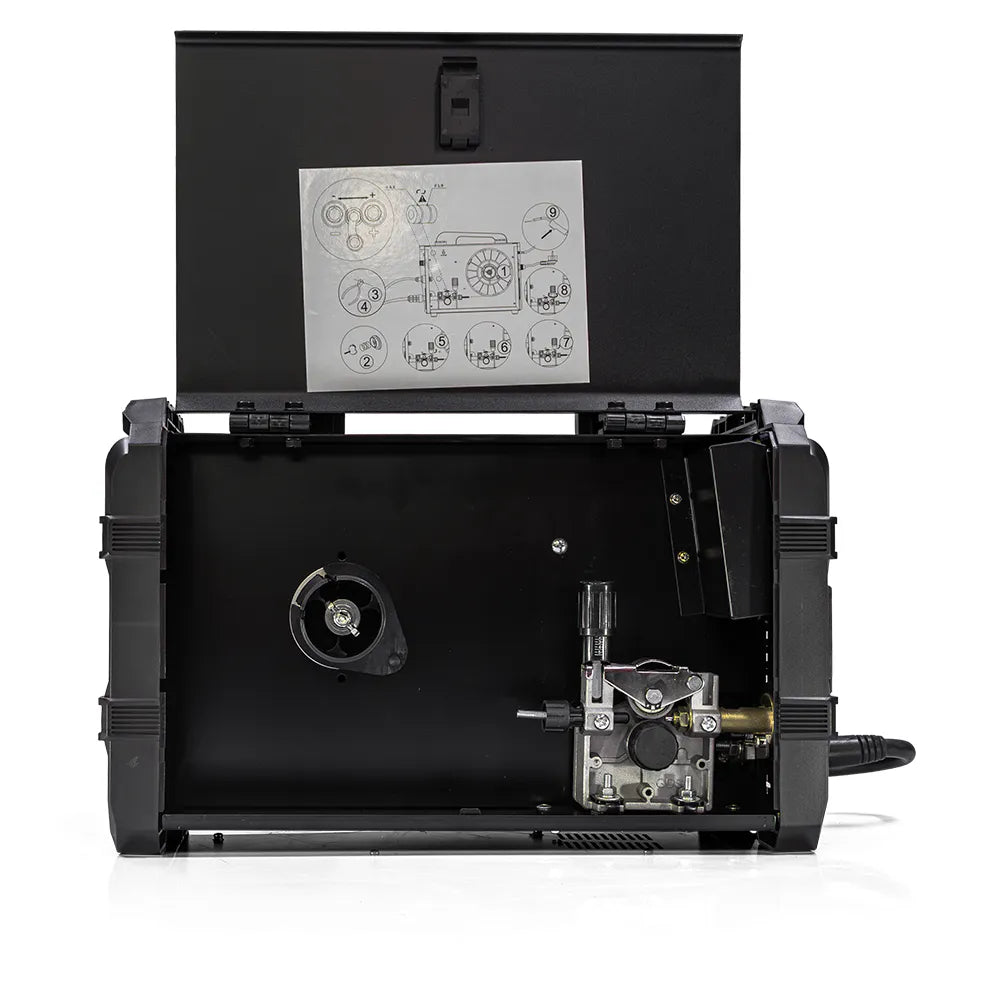

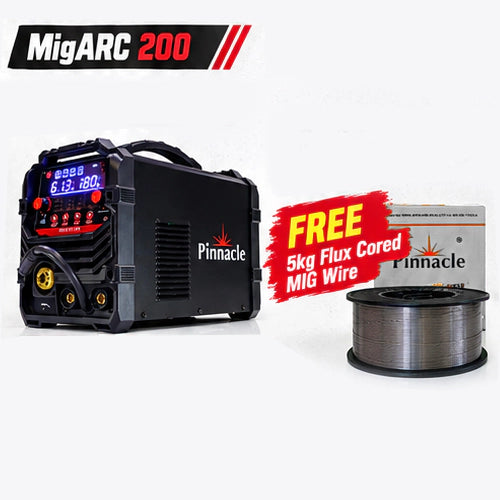

The New Digital MIGARC 200 features a full digital functionality as seen in the image below, plus it provides a new feature called synergic welding. These popular MIG Welding Machines are one of the first of it’s kind to provide a compact MIG Multi-Process Welding Inverter. Ideal for the DIY Hobbyist and can handle light industrial welding, this machine is small enough to handle in any welding environment. With a built-in wire feeder suitable for 5kg wire spools, ARC Welding Cable Kit for MMA Welding and a 2 meter MB15 MIG Torch.

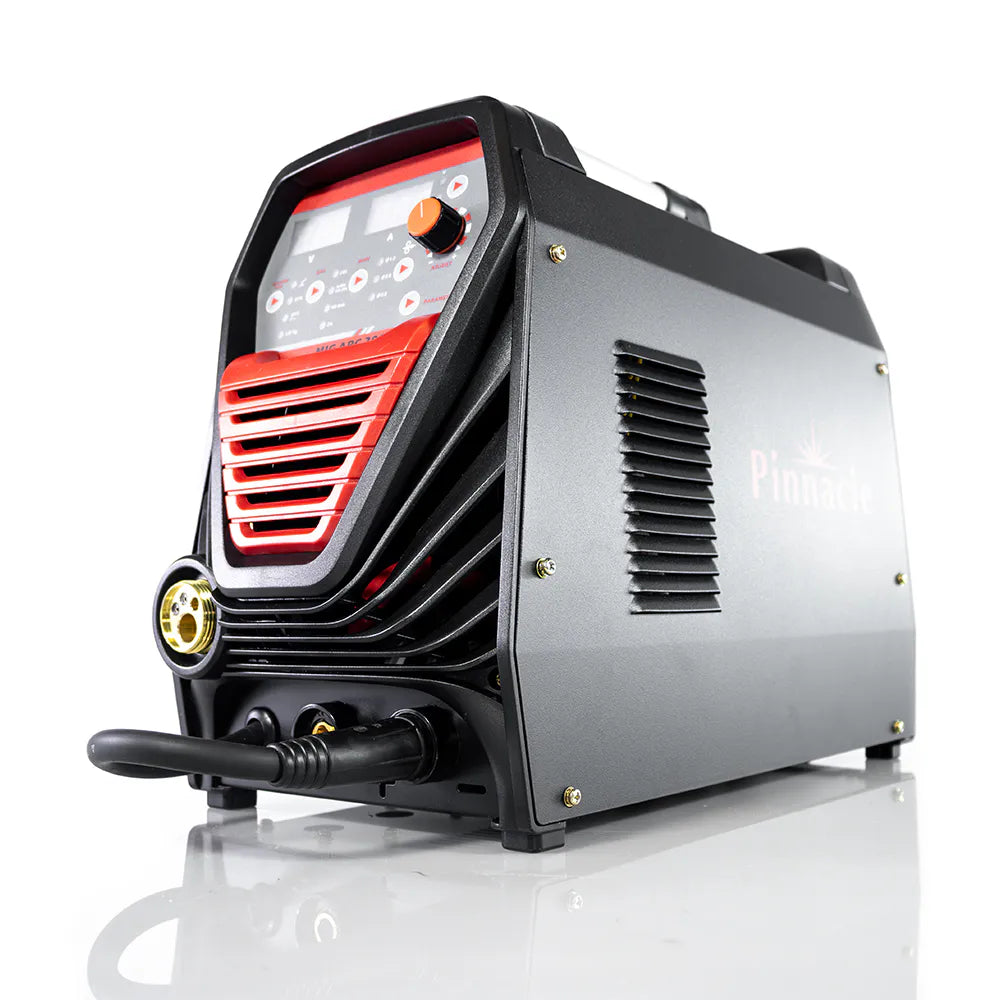

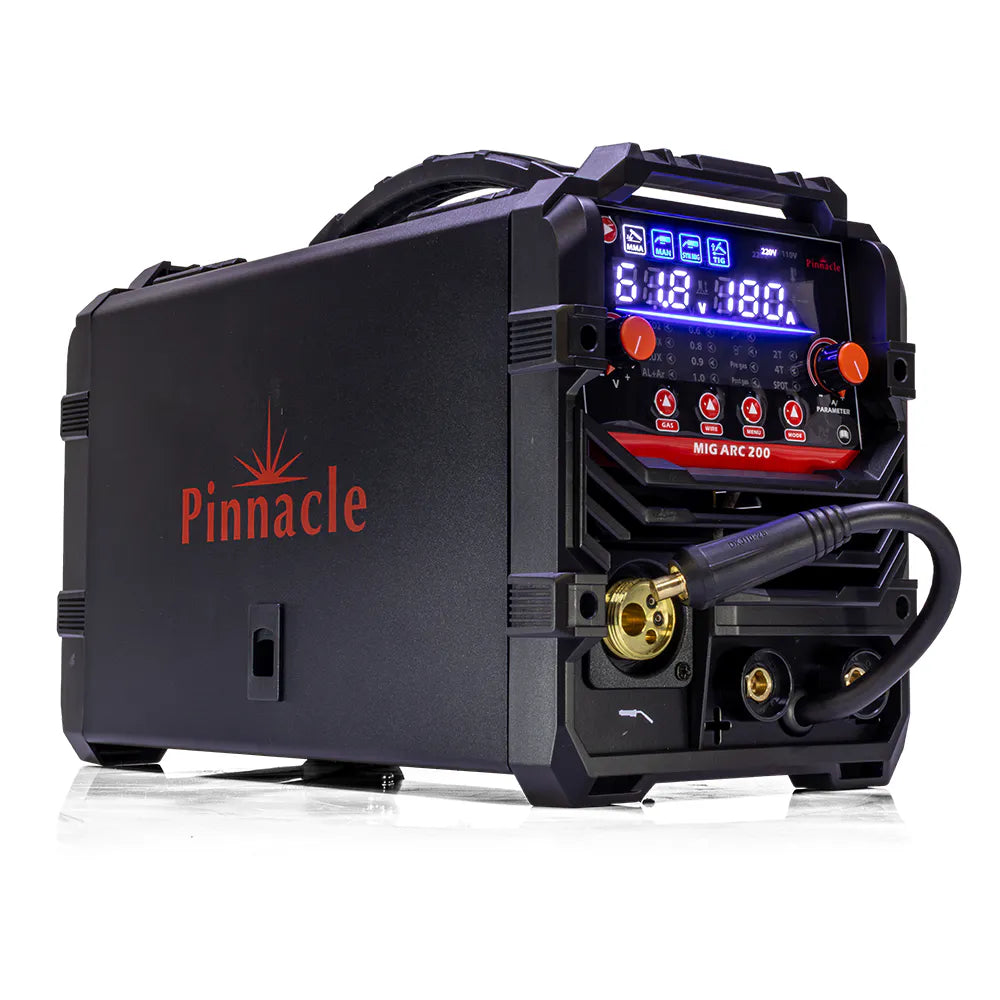

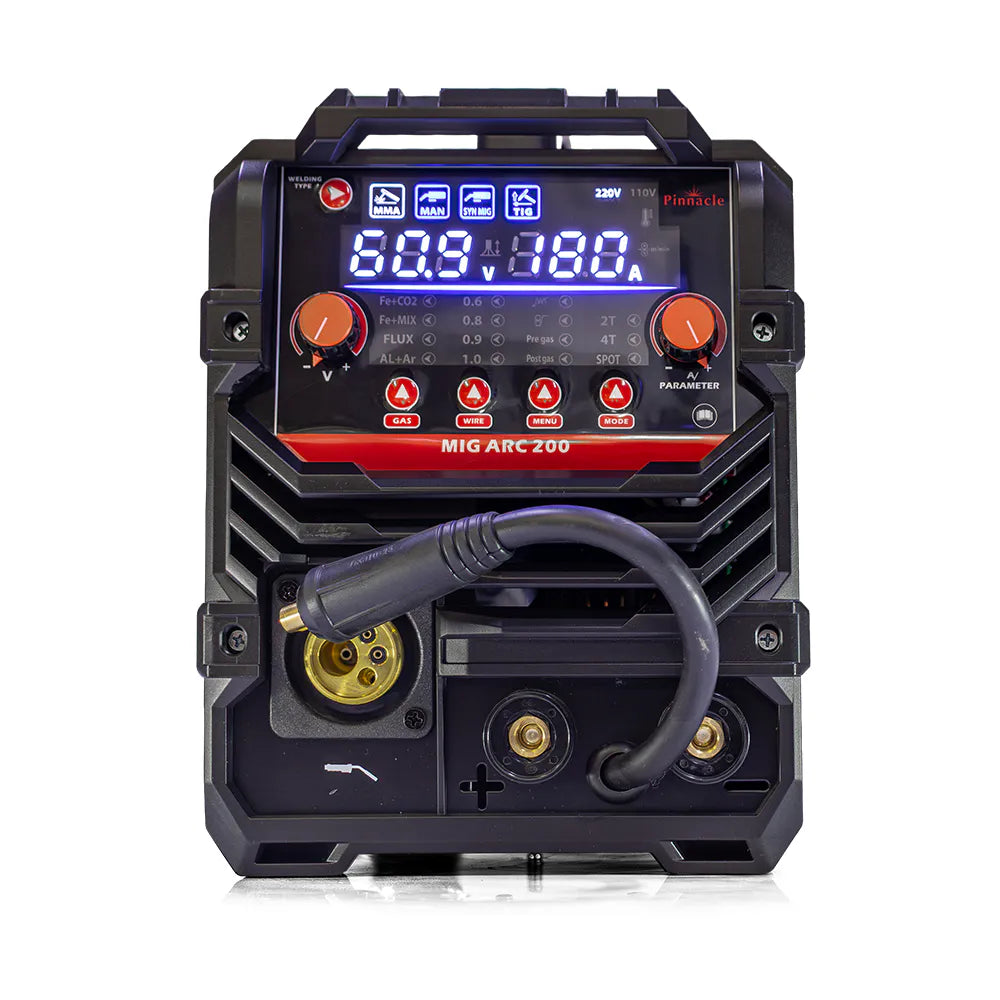

Front Panel Digital Display
The New Digital MIGARC 200 MIG Welding Machine Front Panel allows ease of selection between functions and with the new synergic welding functionality most settings are preset, presenting you with a plug and play experience. Simply select the welding function, gas use selection, wire thickness, and then weld and adjust your wire speed accordingly.
The New Digital MIGARC 200 MIG Welding Machine also allows one to select up to 9 different preset welding mode settings, making welding easier even for the novice.
Let us not forget the new high-tech design, this would look good in any garage or workshop.
Features:
- 200 Amp MIG Welding Machine
- 60% Duty Cycle
- Welds MIG (Gas and No Gas), ARC & TIG
- Single Phase, Portable, Fan-Cooled Digital Inverter Welding Machine
- Microprocessor Operation Panel for simple & precise control
- More Compact Design, Lightweight
- Synergic Control
- Only accommodates 5kg MIG Welding Wire Spools

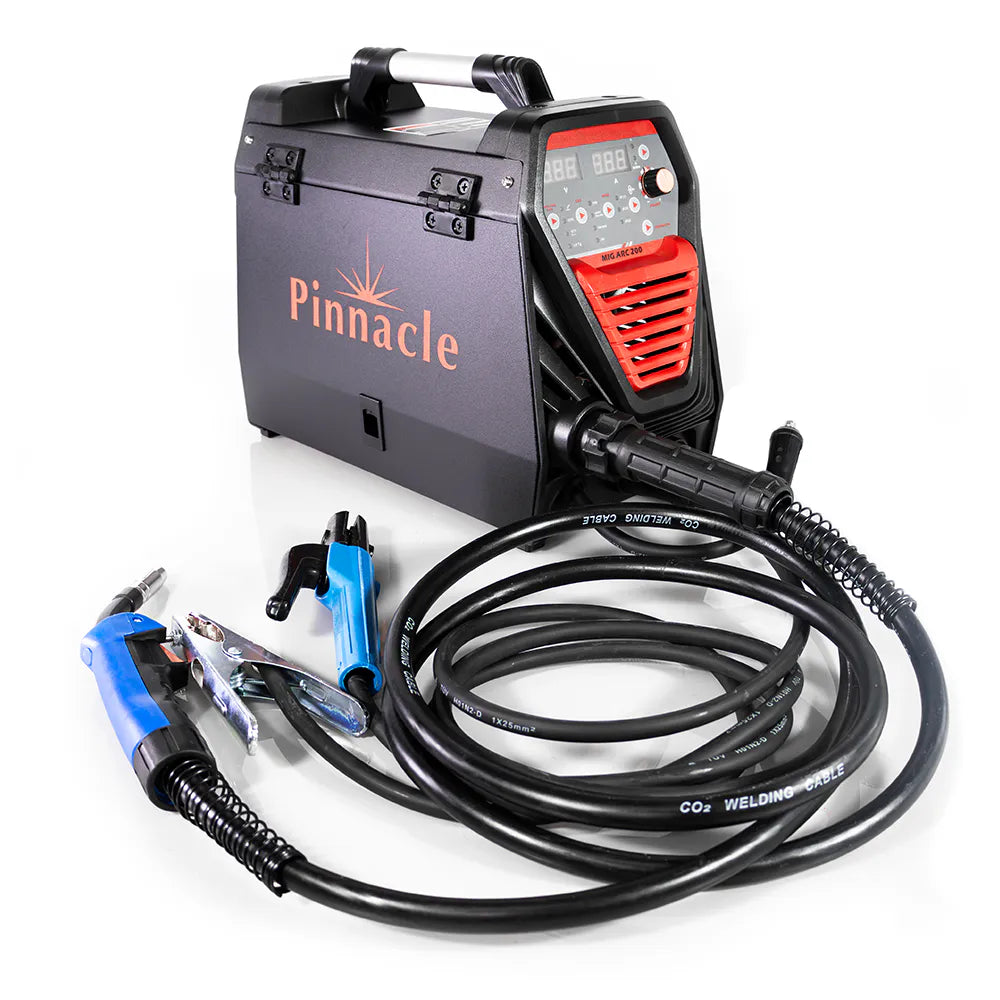

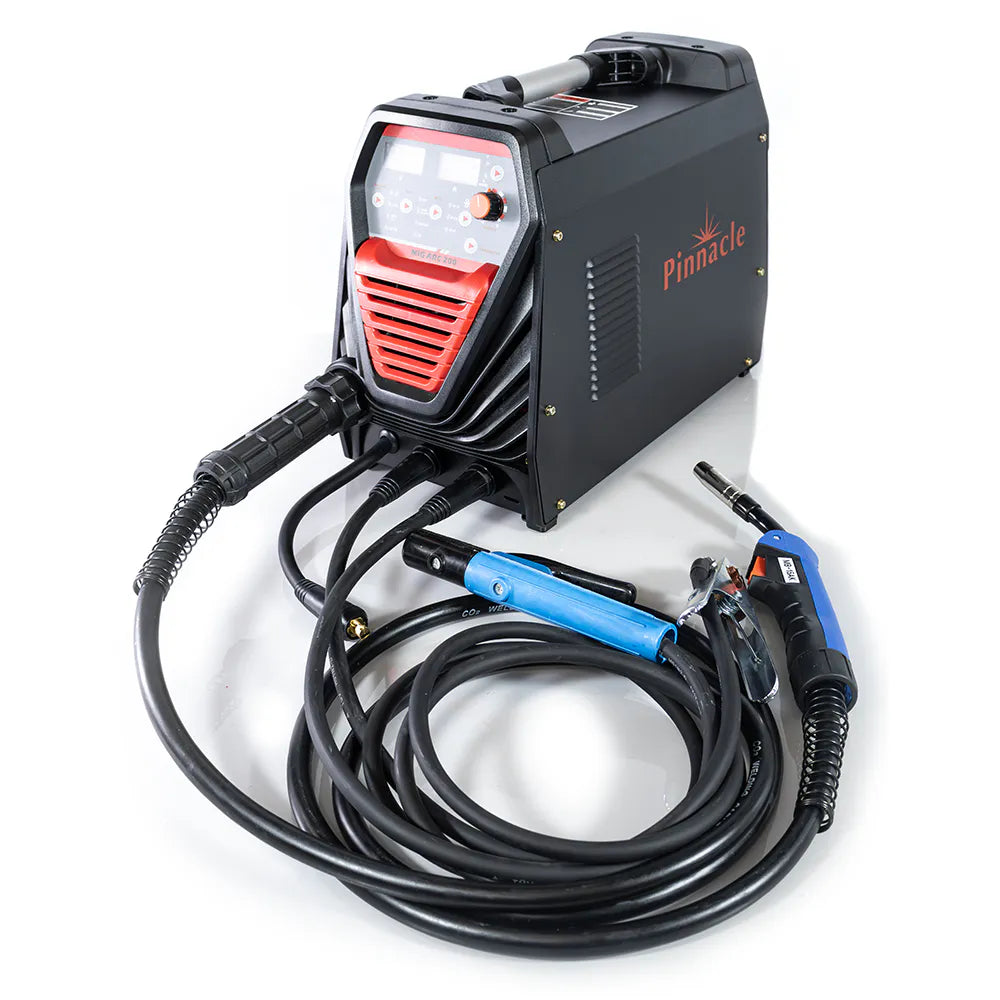

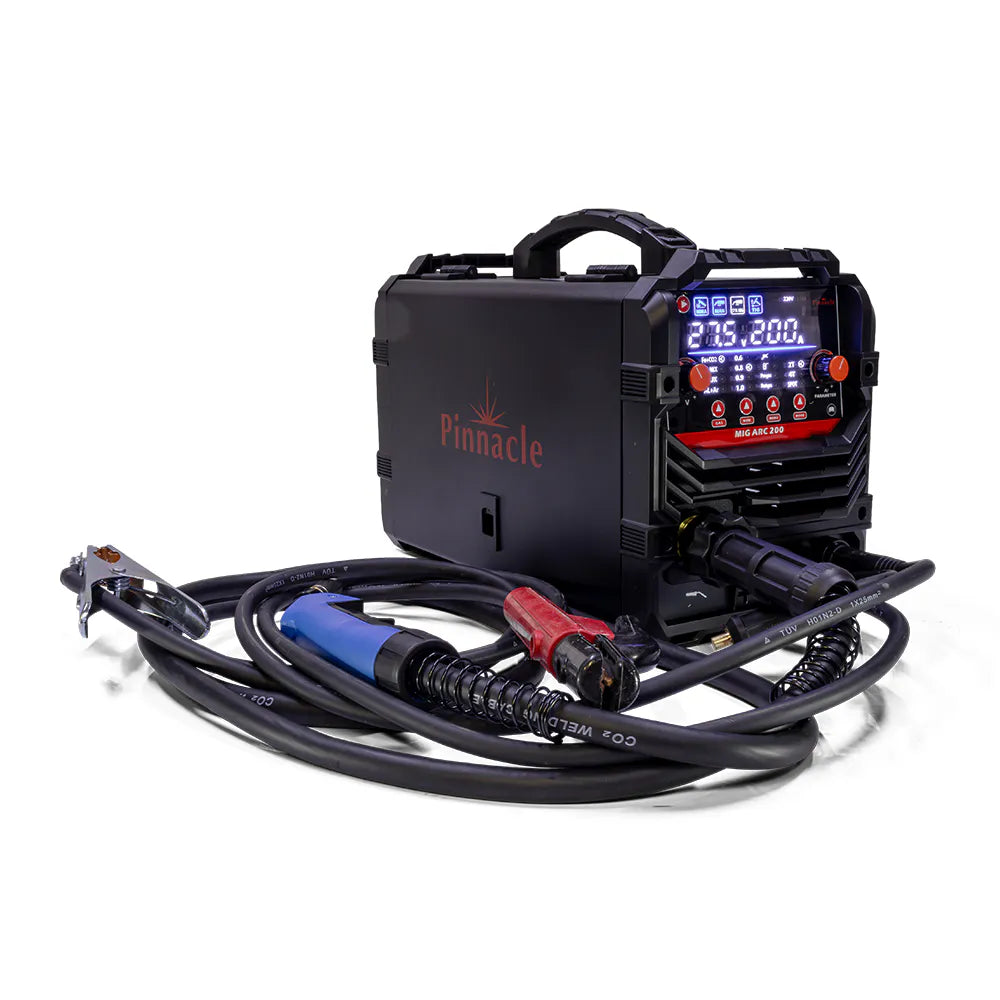

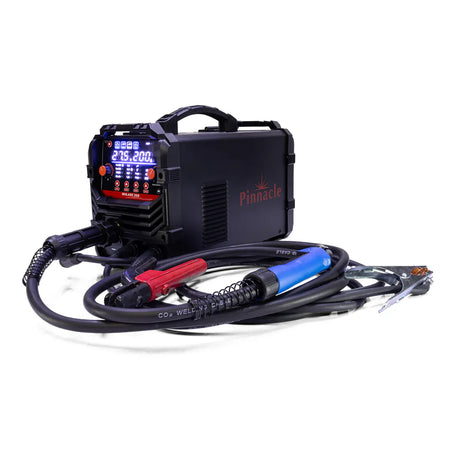

Package Includes:
- Inverter Power Source (MIGARC 200)
- 2M MB15 MIG Welding Torch
- ARC Welding Cable Kit, Electrode Holder & Earth Clamp
Optional Extras (Compatible with MIGARC 200):
Aluminium Welding Optional Extras:
For Video Setup Guides Click Here
MIGARC 200 Digital MIG Welder User Manual Download
MIGARC 200 Specification
| Brand | Pinnacle |
| Code | 6-100091 |
| Product | Pinnacle MIGARC 200SD MIG / ARC Inverter Welder 200 Amp |
| Product Type | Welding Machine |
| Welder Type | Multi-Process MIG Welding Machine |
| Application | Commercial; DIY Hobbyist |
| Flux Core / Gasless Wire use | Yes |
| Flowmeter / Regulator | No |
| ARC Cable Kit | Yes |
| MIG Torch | Yes, MB15 2M |
| Spool Size | 5kg |
| Input Voltage | AC 220V ±10% |
| Rated Power Capacity | 7.1 kva |
| No Load Voltage | 53V |
| Output Current | 10-200A |
| Duty Cycle % | 60% |
| Wire Size | 0.6 / 0.8 / 0.9mm |
| Warranty | 12-month |
| Weight | 12.5kg |
| Dimension | 480 x 180 x 350 mm |
-
