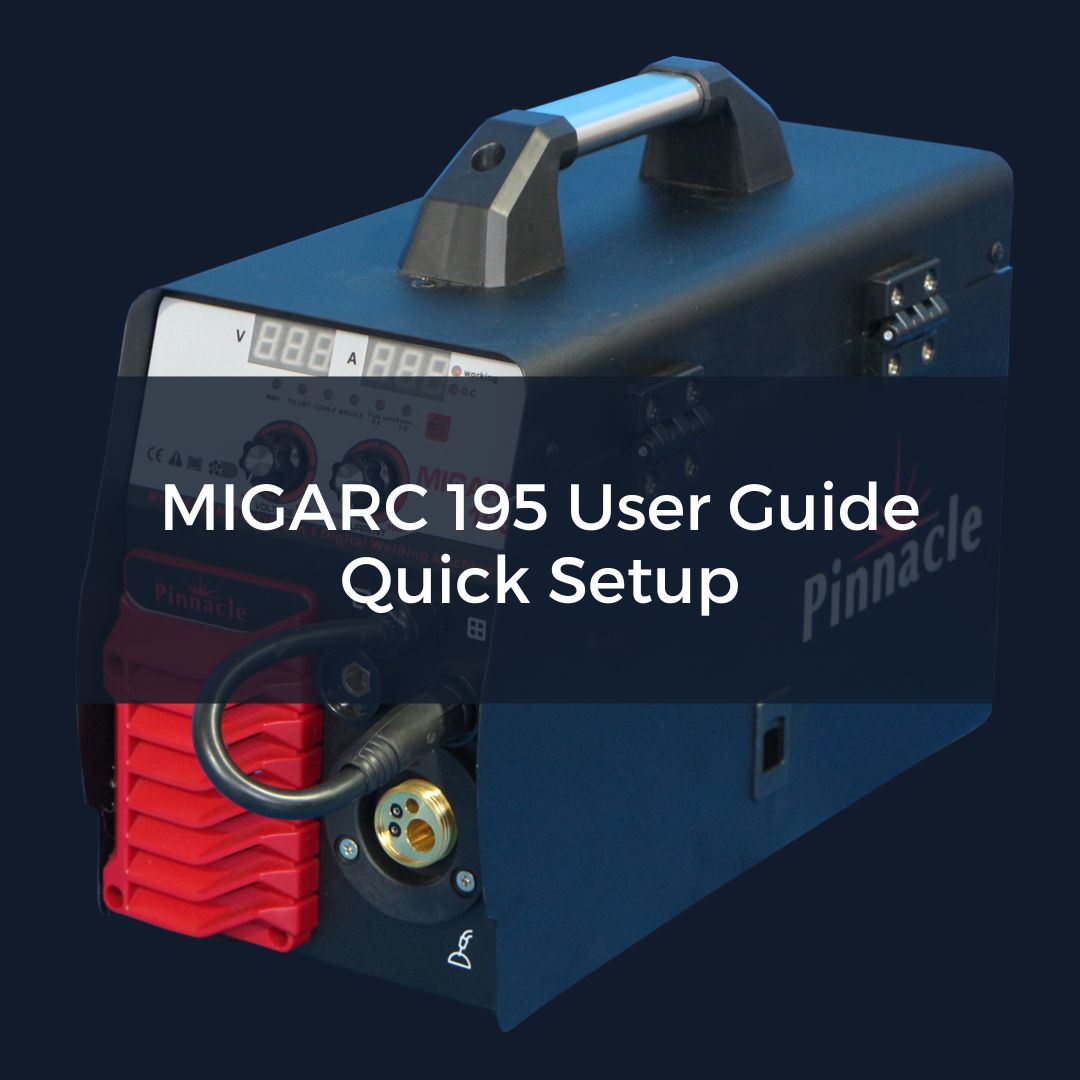

Pinnacle MIGARC 195 – Frequently Asked Questions (FAQs)
Q1: What type of welding can the Pinnacle MIGARC 195 perform? The Pinnacle MIGARC 195 is a versatile MIG welding machine suitable for both gas welding and gasless welding. It can handle a wide range of applications, from hobbyist projects to professional fabrication.
Q2: What safety precautions should I follow when using the machine? Always wear proper PPE such as gloves, a helmet, and safety glasses. Ensure good ventilation, avoid welding near flammable materials, and disconnect the power supply before maintenance.
Q3: How do I set up the welding torch? Attach the torch to the front panel connector, connect the gas hose to the regulator, and secure the jump lead to the correct polarity: positive for gas welding, negative for gasless welding.
Q4: How do I connect the gas cylinder? Secure the cylinder upright, attach the regulator, and connect the gas hose from the machine to the regulator. Adjust the flow rate to 15–20 CFH during operation.
Q5: How do I connect the work clamp? Attach the clamp securely to the front panel. Use positive polarity for gasless welding and negative polarity for gas welding.
Q6: What welding wire should I use? Install the wire spool inside the machine, feed it smoothly through the rollers into the torch, and ensure proper tension for consistent wire feed.
Q7: What are the recommended welding parameters for steel?
-
1/16" (1.6mm): 40–60A, 16–18V
-
1/8" (3.2mm): 70–100A, 18–20V
-
3/16" (4.8mm): 110–130A, 20–22V
-
1/4" (6.4mm): 140–160A, 22–24V
Q8: How should I maintain the Pinnacle MIGARC 195? Clean the machine and torch regularly, replace consumables like contact tips and nozzles when worn, and store the machine in a dry, dust-free environment.
Q9: Can I use the Pinnacle MIGARC 195 for professional welding? Yes, the machine is designed for both hobbyist and professional use, making it suitable for workshops, fabrication, and repair jobs.
Q10: Where can I find more detailed specifications?
